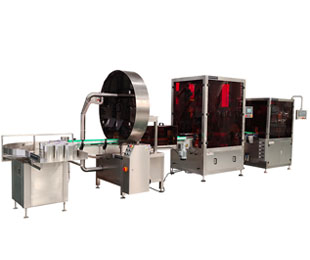

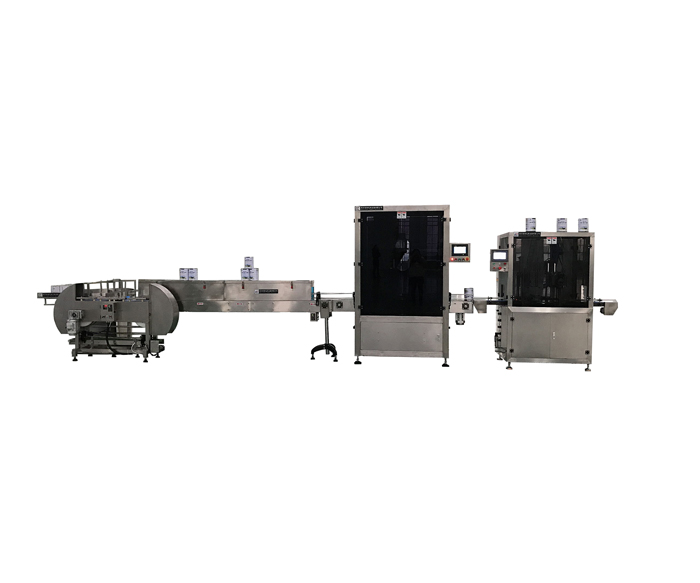

Milk powder filling Nitrogen flushing and seaming line

The appearance of the whole set of machines in this production line is all stainless steel, and all machine structures are selected and designed in accordance with food and drug hygiene standards;
SHARE:
Features

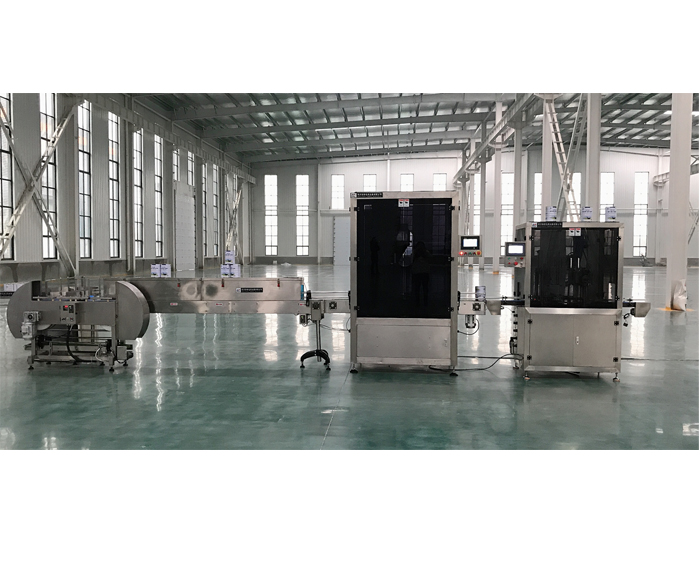

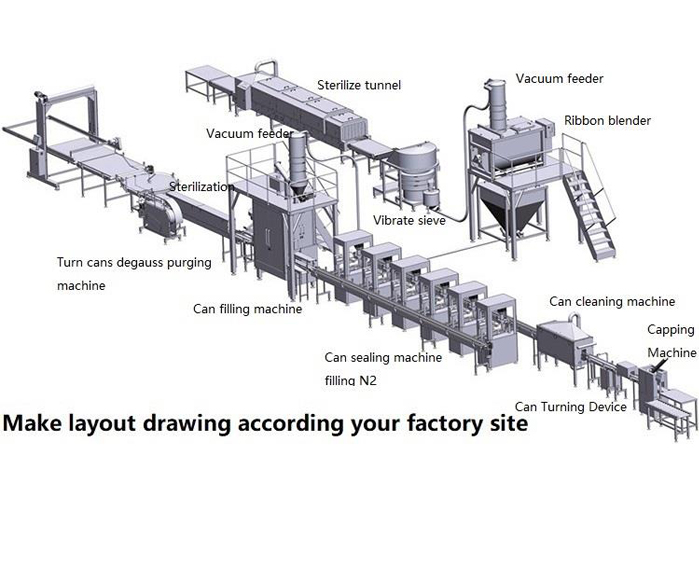

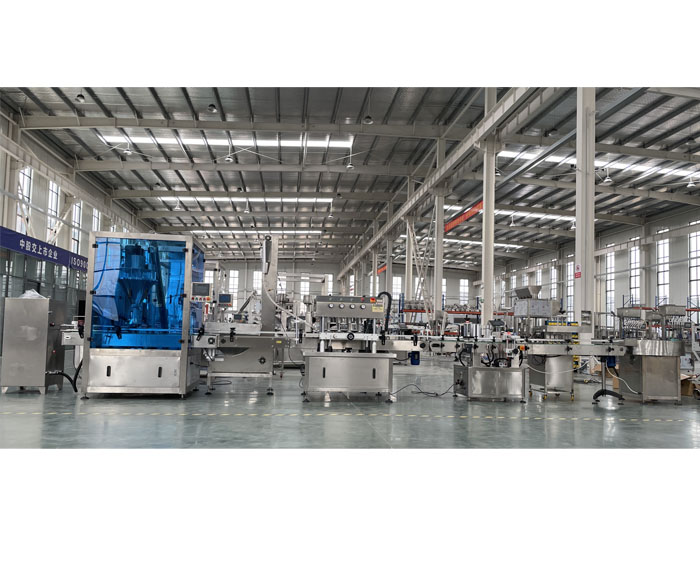

1. The automatic powder filling line includes: bottle unscrambler → automatic feeding machine → single-head powder filling machine → capping machine (or can sealing machine) → bottle mouth aluminum foil sealing machine → labeling machine → inkjet printer → Chain conveyor belt→packing platform, the assembly line configuration can be selected according to the requirements of the customer.
2. The appearance of the whole set of machines in this production line is all stainless steel, and all machine structures are selected and designed in accordance with food and drug hygiene standards;
4. The inner wall of the container in contact with the material is polished, and the structure that is frequently disassembled and washed is connected with easy-disassembled parts to ensure that it is hygienic and convenient to handle when shifting or changing products;
5. You can go to the factory for site survey and design the best production plan on the spot; provide free technical support for other aspects of the production line.
Technical parameters

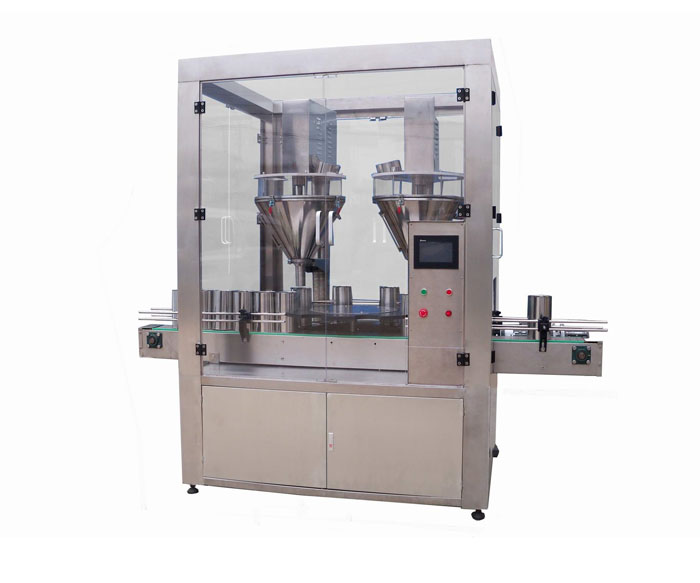

Measuring method Auger weighing filling
Tank size Diameter φ50-180mm, height 50-350mm
Filling range 10-2000g
Filling speed 0-18 cans / min
Power Three-phase 380V (or single-phase 220V),3.5kw
Machine weight 1000kg
Container size Diameter 50--180mm, height 50--350mm
Machine dimension 3330 × 1400 × 2400mm
Hopper volume 50L
Application
