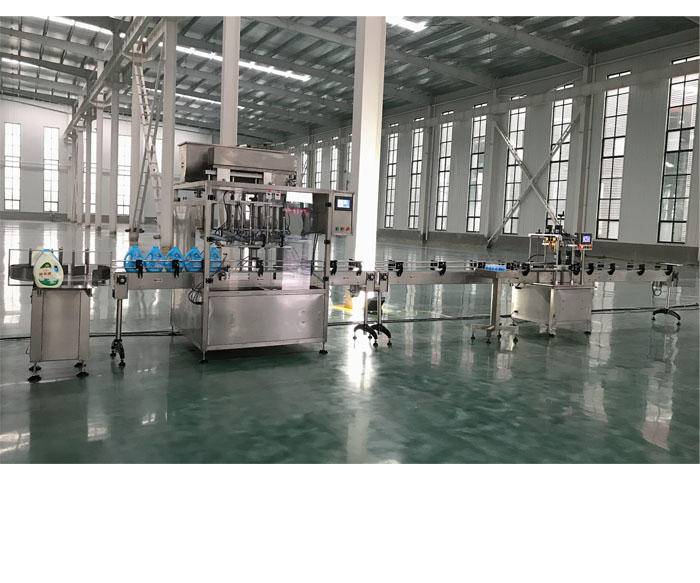

Servo motor liquid filling capping line

The whole production line is widely used in food, medicine, chemical, daily chemical and other industries, such as filling honey, ketchup, rice wine, seafood sauce, grease, lubricating oil, detergent, laundry detergent and other viscous liquid filling. The parts in contact with materials are made of high-quality stainless steel, which conforms to GMP standards adopts a special pneumatic three-way filling valve with compact and reasonable design and convenient adjustment of filling volume. It is suitable for filling liquid and cream products, especially for high-viscosity materials. The tank is designed with a stirring device to prevent the precipitation of crystalline materials.
SHARE:
Features
With PLC programmable control, 6-inch touch screen human-machine interface system, which implements automatic bottle feeding, automatic filling, automatic bottle discharge, no bottle filling, accurate filling volume and counting function. Electric appliances and electric components are all international brands to ensure excellent quality and stable performance. This machine is equipped with a filling head to prevent dripping and wire drawing to ensure no dripping after filling. Equipped with a submerged filling system to ensure that there is no foam and overflowing during the filling process. The filling mechanism is covered with plexiglass, beautiful and dustproof.
Technical parameters
Model AT-SFGZ-L4 AT-SFGZ-L6 AT-SFGZ-L8 AT-SFGZ-L12 AT-SFGZ-L16
Filling heads 4 6 8 12 16
Filling range 50-1000ml / 500-3000ml(5L Filling twice)
Filling accuracy ±0.1%(>100ml)
Capacity
(500ml)
500-1000 Bottle /hour 800-1600 Bottle /hour 1000-2000 Bottle /hour 1500-3000 Bottle /hour 2000-4000 Bottle /hour
Air pressure 0.5-0.7mpa
Air consumption 0.2 m³/min 0.2 m³/min 0.4 m³/min 0.8 m³/min 0.8 m³/min
Power 2.0kw 2.0kw 2.0kw 2.5kw 2.5kw
Weight 300kg 400kg 500kg 700kg 900kg
Dimension
(L*W*H)cm
400×110×210 400×110×230 400×115×230 600×100×230 600×100×230
Application
