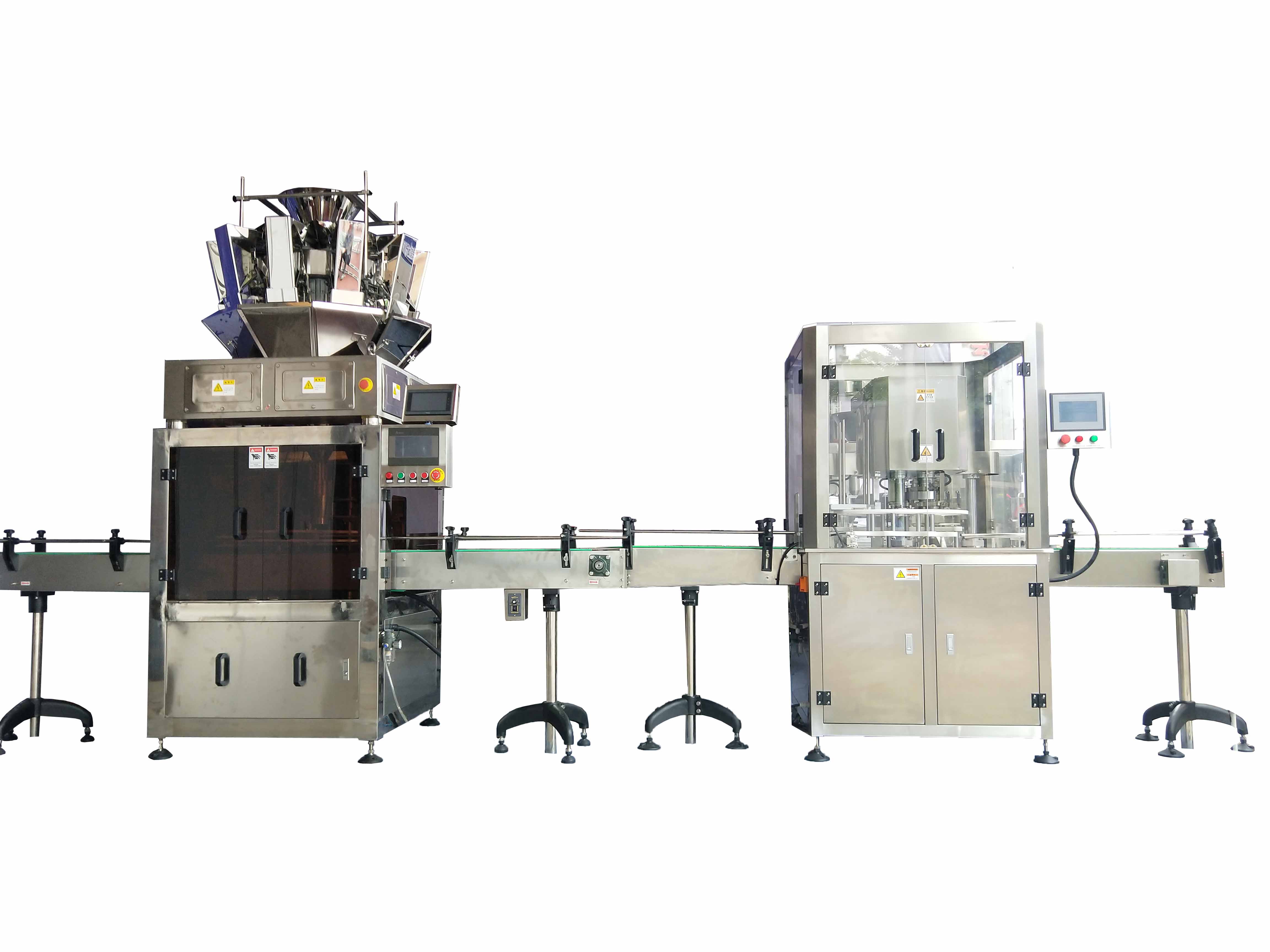

Multihead weighing filling line

This packaging line is include: bottle unscrambler, multihead weighing filling, high speed capping machine and labeling machine which is suitable for packing various types of granular products, for example: seeds, medicine, dried fruits, roasted seeds and nuts small flake and irregular products. is widely used in food, seed, medicine, chemical and other industries.
SHARE:
Features
1. The multihead weiging filling technology has the characteristics of less weighing error, higher precision.
2. The after weighed material falls into the pre-loading bucket automatically to reduce the drop time and increase the filling speed.
3. The pre-loading bucket opens automatically when the containers are in place, and the material falls into the container right after, no container no filling.
4. The layout of the whole packaging line is reasonable, easy to change the filling material and maintenance.
Technical parameters

Filling machine:
Filling heads 14
Packing speed(100g) 35pcs/min
Filling range 50-1500g
Weigher volume 2.5L
Voltage 220VAC 60Hz
Power 1.5KW
Dimension 1700*1200*1500mm
Weight 500Kg

Capping machine:
Model AT-FG
Material Stainless steel
Sealing speed 20-35/min
Sealing height 50-140mm
Can diameter 52.5-130mm
Power 220V/380V 50/60Hz
Weight 450kg
Dimensions (L * W * H)   3000*1000*1700mm

Labeling machine:
Labeling speed 0-60pcs/min
Labeling accuracy ±1mm
Applicable product size Diameter 30-150mm, height 30-250mm
Applicable label range Length 10 ~ 260mm, width 10-160mm
Applicable labels Self-adhesive label, self-adhesive films,        Electronic supervision codes, bar codes, etc.
Applicable products Products requiring label or protective film on the circumferential surface
Dimensions 2200 * 1400 * 1750 mm
Weight 200Kg
Voltage 220V 50/60Hz 500W
Air pressure 4 -8Kg/C m²
Application
