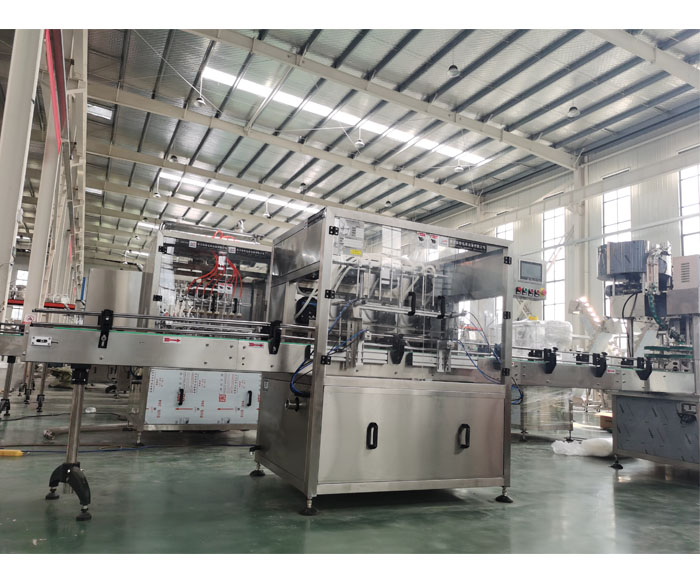

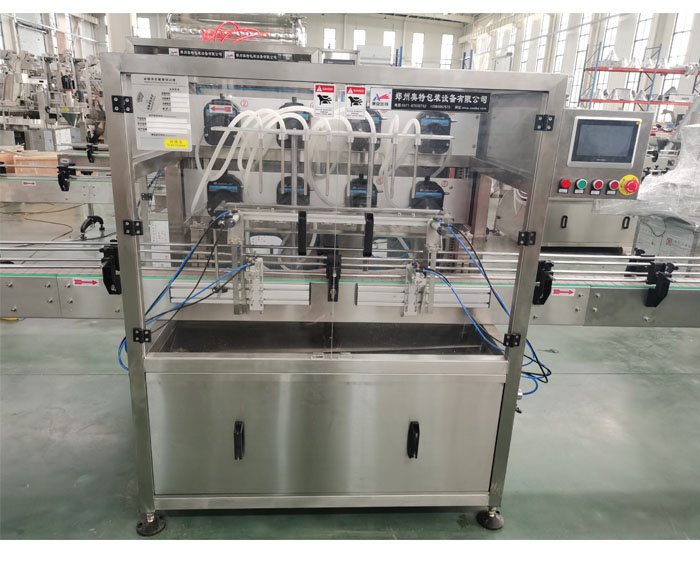

Liquid Peristaltic Pump Filling Machine

Adopts servo motor driven peristaltic pump to realize the metering/filling process, easy to adjust filling volume, can be operated directly on the touch screen.
Automatic bottle feeding, filling and bottle discharging.




SHARE:
Features
1. The filling volume is accurate and with counting function;
2. This machine adopts imported servo motor to drive peristaltic pump to realize metering filling;
3. Easy to change specifications and adjusting filling volume, can be operated directly on the touch screen, simple and convenient;
4. Automatic bottle feeding, filling and bottle discharging, no bottle no filling;
5. The filling volume is accurate and has a counting function;
6. Filling head made of stainless steel 316#.
Technical parameters
Model AT-RDB
Number of filling heads 2-10(can be customized)
Filling range 2-100ml
Filling accuracy ±1%
Speed (500ml) 700-1000 bottles/hour
Air pressure 0.5-0.7mpa
Air consumption 60L/h
Total power rate 2.2KW
Weight 600kg
Dimensions (L×W×H) 4000×1100×2100mm
