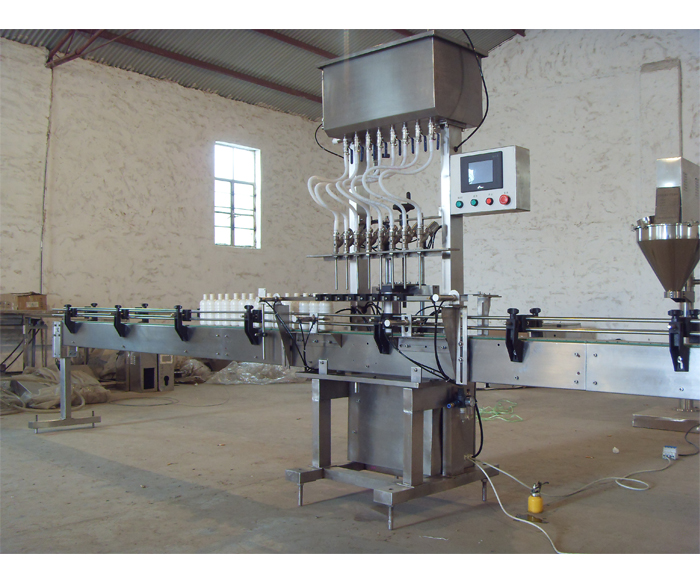

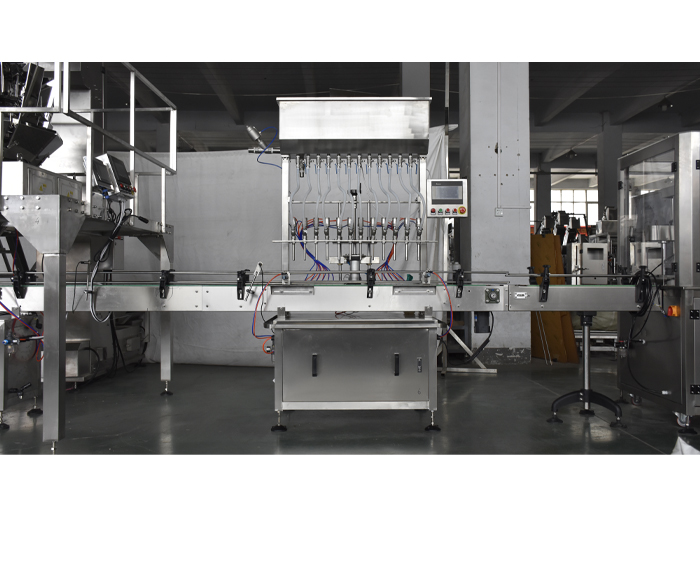

Automatic liquid filling machine

AT-L
The machine has a simple structure, which can widely used for liquid filling such as juice, soy sauce, vinegar, edible oil, oral liquid, disinfectant, pesticide, chemical, and other liquids filling. The filling is accurate, no bubbles, no dripping. Applicable to a variety shaped bottles filling.

Send Email

Introduction

Technical DATA

Application

Features

1.This machine adopts PLC control, LCD touch screen operation interface.

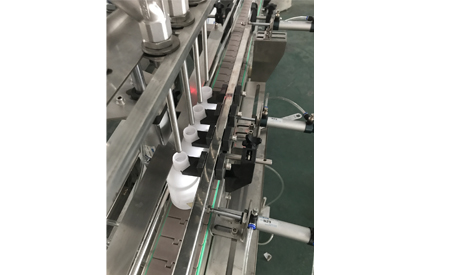

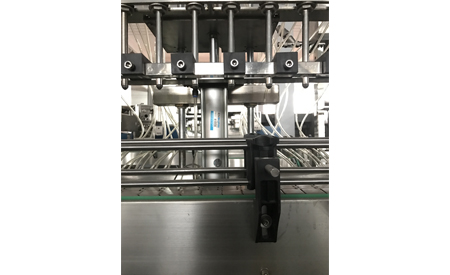

2.The international brand pneumatic filling valve to ensure no dripping during the filling process.
3.Adopts constant pressure fixed flow channel parameters, and controls the filling time to realize different volume filling.

Technical DATA

Model	AT-L4	AT-L6	AT-L8	AT-L12	AT-L16
Filling range	40-1000ml
Capacity(500ml)	900bottles/hour	1500bottles/hour	2400bottles/hour	3600bottles/hour	4800bottles/hour
Filling accuracy	±1%(>100ml)
Air pressure	0.5-0.7mpa
Air consumption	200L/t	200L/t	200L/t	400L/t	400L/t
Power	1.0KW	1.0KW	1.0KW	1.5KW	1.5KW
Weight	260kg	260kg	260kg	400kg	500kg
Dimensions(mm)	40008002100	40008002100	40008002100	60008302200	60008302200
