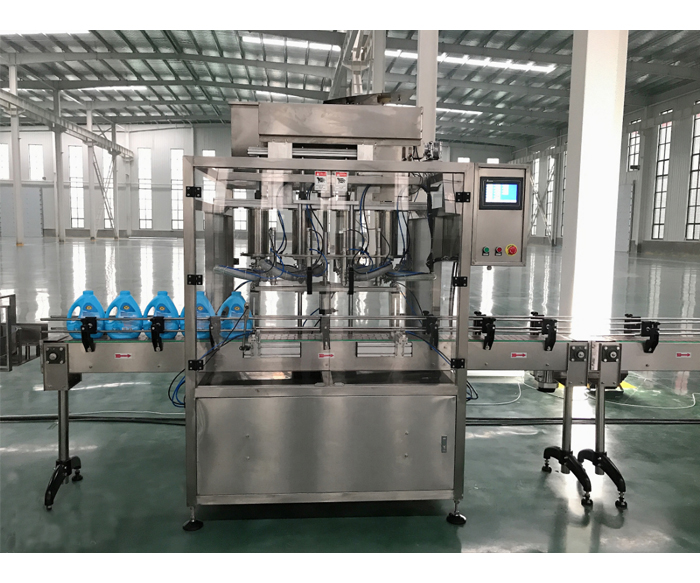

Piston filling machine

AT-GT-L
Automatic viscous liquid filling machine is widely used in the filling of viscous liquid, paste products in the food, medicine, daily chemical, oil, fishery, pesticide and other industries. Such as honey, liquid soap, sanitizer gel, detergent and other viscous liquid filling. The contact parts to the filling materials are made of high-quality stainless steel and meet with GMP standards.

Send Email

Introduction

Data

Application

Features

1.The machine adopts a pneumatic three-way filling valve, compact design, aesthetic appearance;

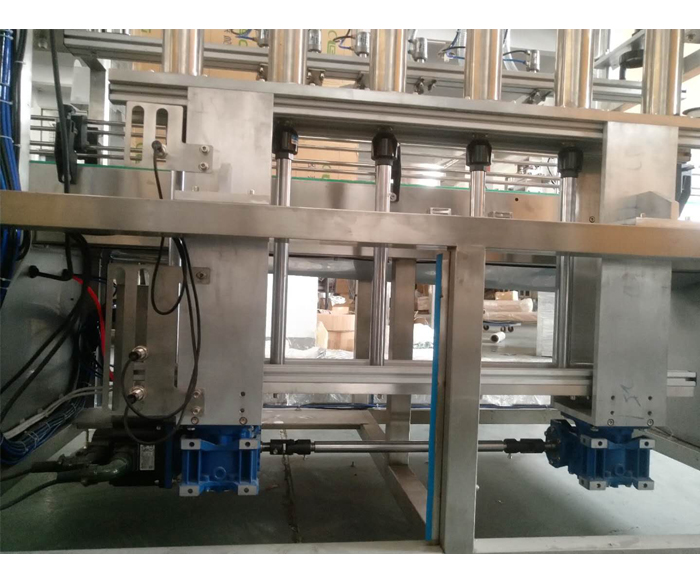

2.With motor cylinder stroke adjustment, filling volume easy adjustment;
3.Conveying filling the bottles, no bottle no filling;
4.High accuracy, with counting function;
5.PLC programmable control, with the 6 inches touch screen interface system;
6.It is equipped with a filling head that prevents dripping and drawing, and ensures no dripping after filling;
7.Configuring the dive filling system, to make the filling process non-foaming, non-overflow the filling material;
8.Sanitary pipeline valves, quick connector, easy removal installation.

Data

Model	AT-GT-L4	AT-GT-L6	AT-GT-L8	AT-GT-L12
Number of filling heads	4 heads	6 heads	8 heads	12 heads
Filling range	10-100ml , 50-500ml ,100-1000ml ,1000-5000ml
Filling accuracy	±1%(>100ml)
Filling capacity (500ml)	1000 bottles / hour	1600 bottles /hour	2000bottles/hour	3000bottles/hour
Air pressure	350L/t	400L/t	500L/t	800L/t
Total power	1.5KW	1.5KW	1.5KW	2.5KW
Weight	300kg	400kg	500kg	700kg
Dimensions (L * W * H)	400100210cm	600100210cm	600×100×160cm	600×100×160cm

Application
