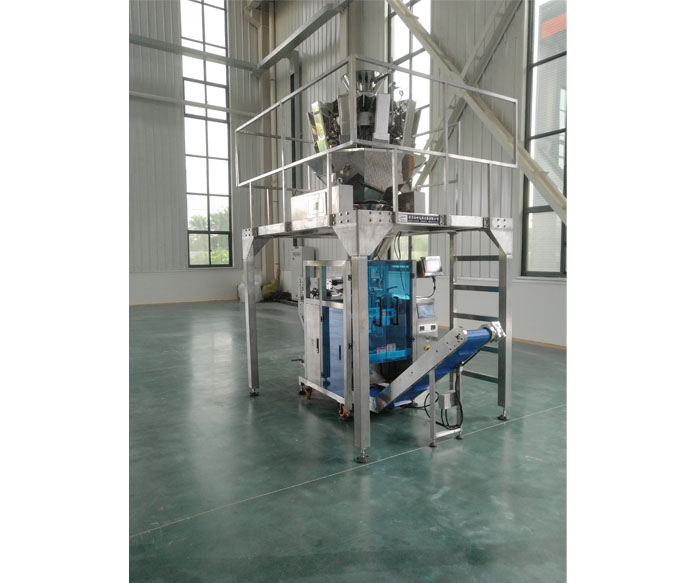

Multihead weigher form fill and seal packaging machine

Z520
This packaging machine adopts 10 heads combined scale for weighing and packing, and various numbers of electronic scales are available for selection according to the packaging materials and speed requirements. It is suitable for automatic weighing and packaging of various shapes of granules and block materials. Such as puffed food, potato chips, dumplings, ice cubes, pet food, biscuits, candy, dried fruit, seeds, salt, hardware etc.
SHARE:
Features
1. 10 heads combined scales, wide range of packaging: suitable for granular and blocks of various shapes, status and properties;
2.High degree of automation: unmanned in the entire weighing and packaging process;
3. Stainless steel and carbon steel materials are available to choose according to the customer needs
Technical DATA
Model AT-Z520
Bag length 80-400mm(L)
Bag width 80-250mm(W)
Film width 260-520mm
Packing speed 65bags/min
Filling range 150-1200g
Air pressure 0.65mpa
Air consumption 0.3m³/min
Voltage 220V 50Hz
Power 3.5KW
Dimension 2000*2000*3500mm
Weight 1500Kg
Application
