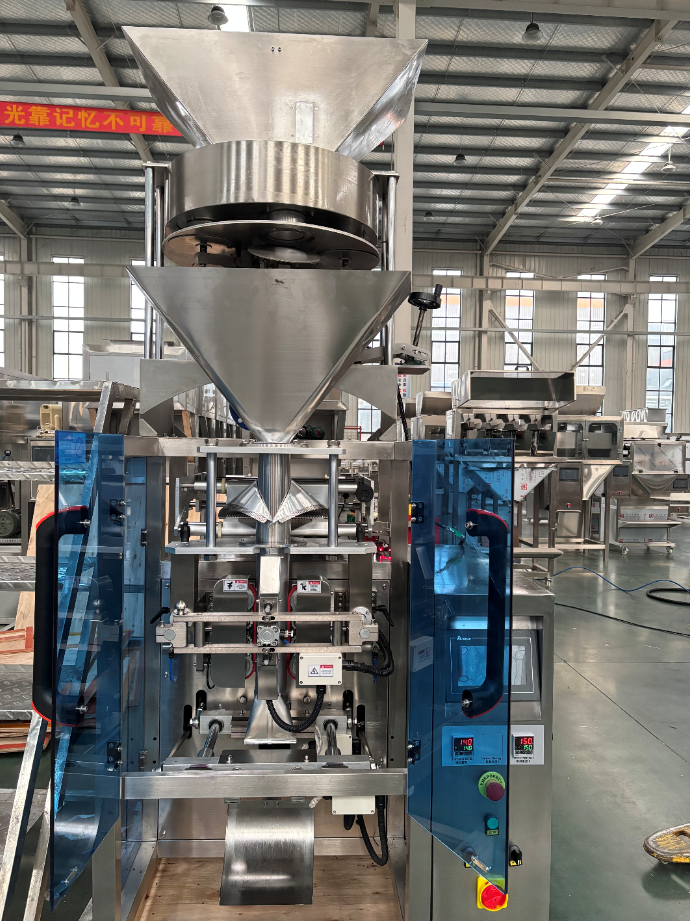

Vertical volumetric form fill and seal packaging machine for granule

K420
This machine is suitable for automatic packaging granule products like all kinds of sweets, chocolate, biscuits, peanuts, nuts, rice, grain, seeds, coffee beans, sugar, salt and desiccant etc.

Send Email

Introduction

Technical DATA

Application

Features

1.Imported PLC control system, simple-operating, visual touch screw.
2.Servo film feeding system, correct register, sealing and cutting positions adopt automatic correction device, high automation.
3.Intelligent temperature controller, accurate temperature control, ensure smooth seal.
4.Perfect automatic alarming protective function, reduce the consumption up to the lowest.
5.Full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.
6.Type of bag making: according to customer's demand, the machine can produce pillow bags, punched hanging bags.

Technical DATA

Model	AT-K420
Bag length	80-300mm
Bag width	80-200mm
Filling range	150-2000g
Packing speed	15-70bag/min
Measurement type	Volumetric
Packing material	OPP/CPP PET/PE, composite film
Film width	180-420mm
Film thickness	0.04-0.08mm
Air consumption	0.36m³/min 0.6MPa
Power	AC220V 50/60Hz 3.5kw
Machine size	(L)1750×(W)1050×(H)2600mm
Machine weight	750kg
