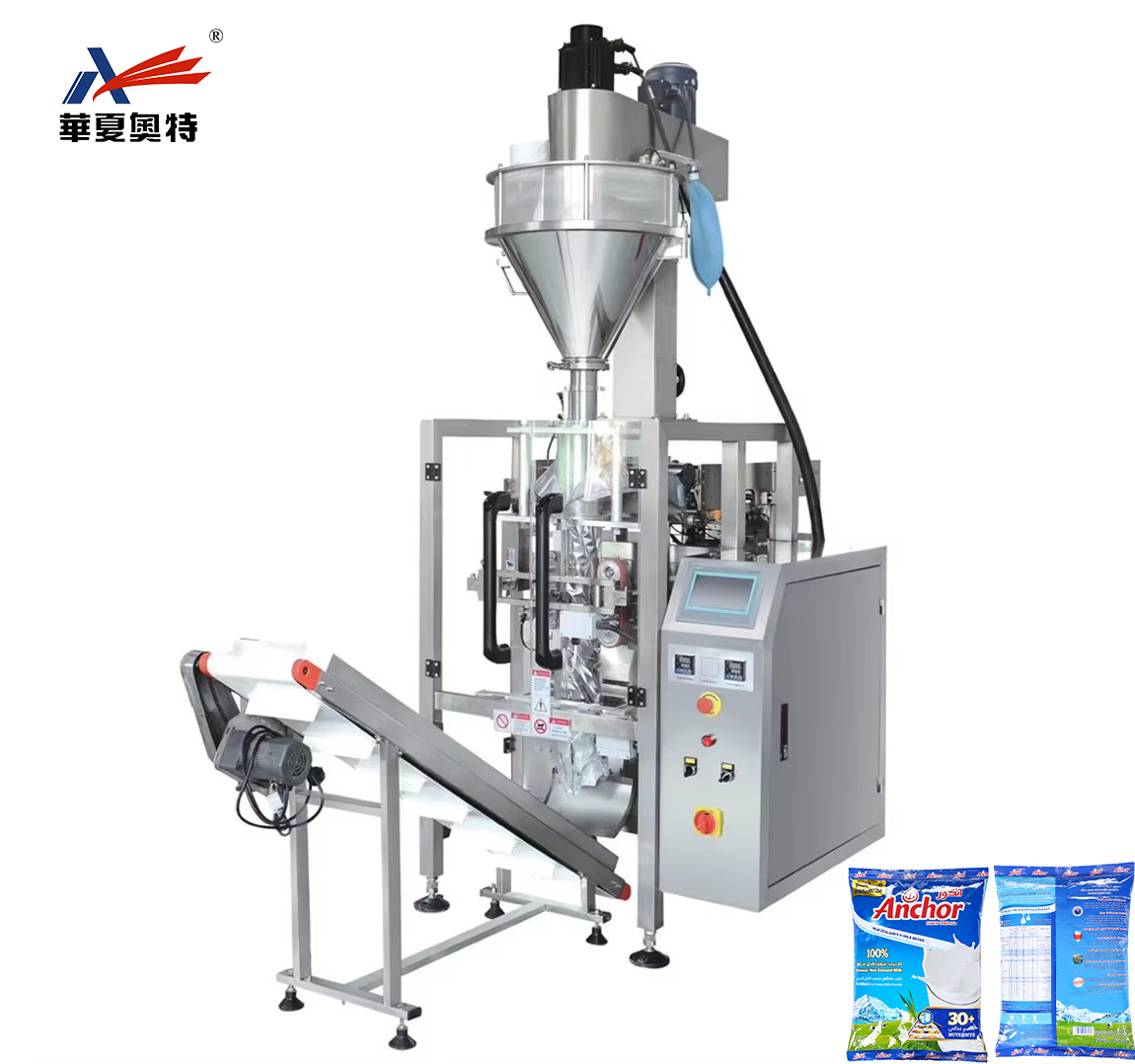

Vertical powder form fill and seal packaging machine

F520
This machine is suitable for automatic packaging of powdered materials such as flour, fine sugar, milk powder, monosodium glutamate, seasonings, food additives, pesticides, washing powder etc.
SHARE:
Features
1. Imported PLC, man-machine interface control system, touch screen operation .
2. Servo film feeding system, accurate positioning, automatic correction device for sealing and cutting positions, high degree of automation.
3. Adopt intelligent temperature controller, accurate temperature control, to ensure beautiful and smooth sealing.
4. The perfect automatic alarm protection function reduces the loss to a minimum.
5. This machine can automatically complete the entire packaging process of feeding, metering, filling, bag making, and date printing when matched with a metering device, and automatically complete counting.
6. Bag making form: This machine can make pillow bags and perforated hanging bags according to customer needs.
Technical DATA
Packing speed 40bags/min
Bag size F420:  (L)80-300mm(W)80-200mm
F520:  (L)80-400mm(W)80-250mm
Packing range 50-2000ml
Film width F420:180-420mm  F520:180-520mm
Packing material OPP/CPP PET/PE OPP/CE  etc
Film thickness 0.04-0.08mm
Air compression 0.3m3/min 0.65MPa
Power AC220V 50Hz 3.5kw
Machine dimension F420: (L)1750×(W)1050×(H)1500mm
F520: (L)1795×(W)1150×(H)1650 mm
