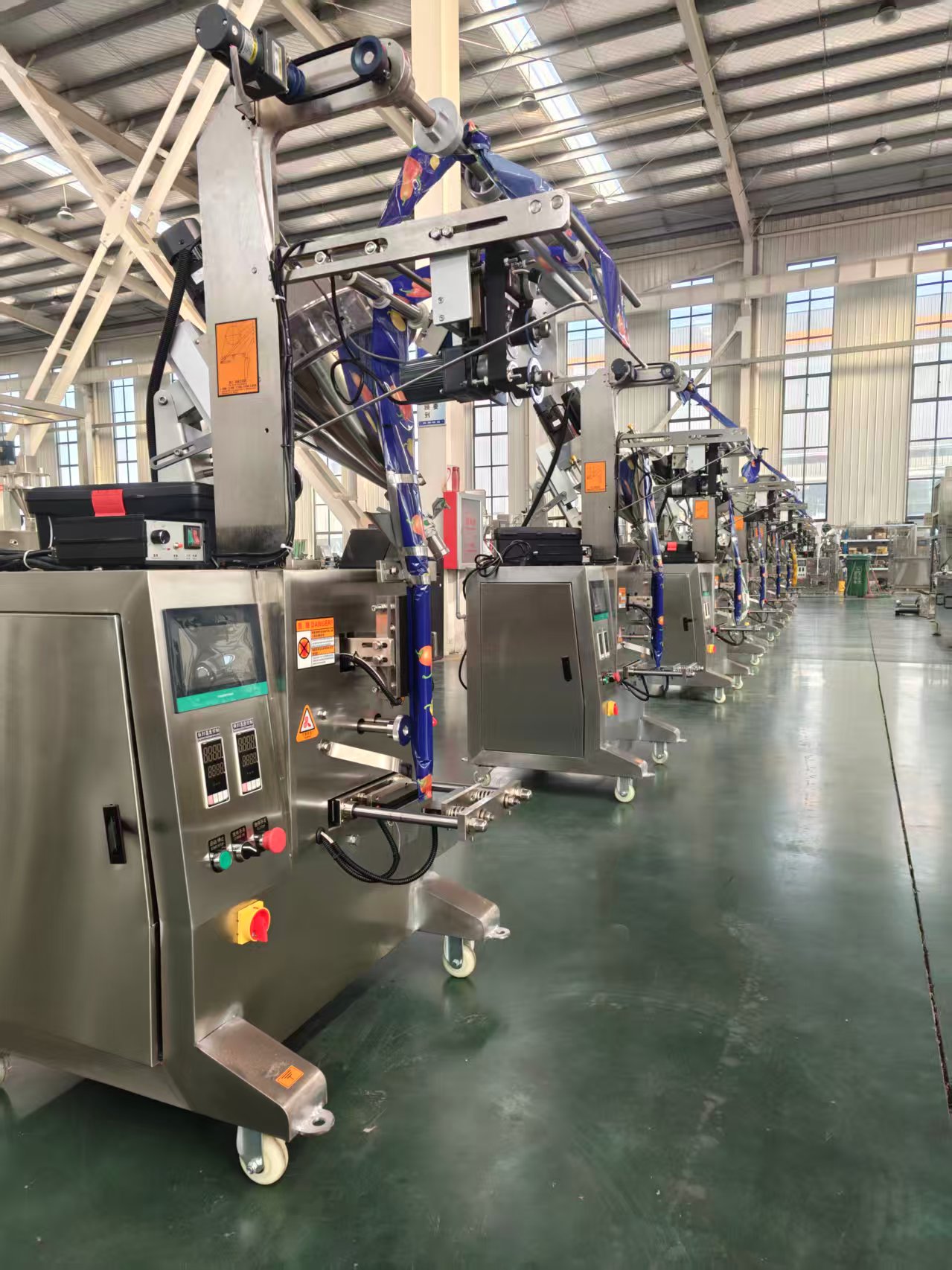

Sachet powder packaging machine

DXDF
The machine is suitable for the packaging of various densities powder products with high precision, easy to clean, meet with the national GMP standards, and can be used in any industry. Such as condiments, flour, starch, pesticides, fertilizers, etc.

Send Email

Introduction

Technical DATA

Application

Features

1. Computer control, LCD display, easy to operate, stable and reliable operation;
2. Stepper motor control bag making system, high precision;
3. Machine stop when run out of film, heat sealing will be work automatically after machine stop;
4. Fully automatic color code tracking, positioning and fixed length of the packaging bag
5. Optional sealing type: three sides, four sides, back seal.

Technical DATA

Model	AT-DXDF-280
Bag length	40-160mm
Bag width	20-120mm
Filling range	2-100g，200-1000g
Capacity	50-70bag/min
Punch or not	No punch
Connected bag or not	Can be selected
Bag type	4 edge seal, plane edge
Power	220VAC/50HZ/2.3KW
Machine size	7306301580MM
Machine weight	200kg
