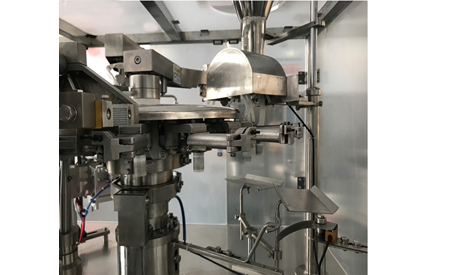

Pre-made bags liquid packaging machine

GDY
This packaging machine adopts a piston measuring cylinder to realize the quantitative filling, and various types of machines are available according to the concentration, viscosity and specification of the packaging material.
SHARE:
Features
1. PLC control, touchable screen, man-machine interface control system.
2. Frequency conversion speed control device, can adjust speed at will.
3. Automatic detection function, if the bag is not opened or the bag is incomplete, no filling, no sealing, the bags can be reused, no material is wasted, saved the production cost for the user.
4. The temperature can be arbitrarily changed on the touch screen according to the package through PLC.
5. Brake function, which protect the safety during shutdown.
6. This machine adopts imported engineering plastic bearings, no need to refuel and maintenance-free.
7. Meet the sanitary standards of the food processing industry, and the materials in contact with the materials are made of stainless steel or materials that meet food hygiene requirements.
8. Wide range of packaging bags are available, pre-made plastic bags and paper bags made of single-layer PE, PP and other materials can be applied.
Technical parameters
Model AT-GDY-200A AT-GDY-300A
Weighing range 10-1500g 100-2500g
Packing speed (200ml) 10-60bags/min 10-50bags/min
Machine weight 1060kg 1280kg
Powder 1.5kw 2.0kw
Voltage AC380V 50HZ/60HZ AC380V 50HZ/60HZ
Machine size 1650*1380*1500(mm) 2200*1850*1500(mm)
Packaging material Composite film, PE, PP, etc. Composite film, PE, PP, etc.
Bag size L:350mm W:100-210mm L200-450mm W:200-300mm
Deatils and Application
